Project Description
Features

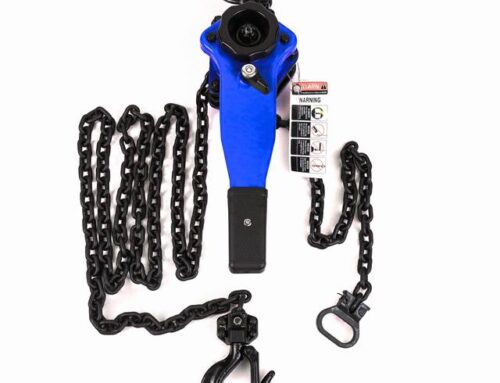

| Product Name: | Aluminium Chain Block Manual Operated Lever Chain Hoist |
|---|---|
| Material | Aluminum Alloy and Steel |
| Place of Origin | China |
| Package | Carton / Wooden Case |
| Application | Aluminium alloy chain block applicable for tight pulling |
| Feature | – High-strength aluminum alloy and high-quality steel – Easy to use, safe and reliable – High-efficiency and easy operation – Easy to maintain and durable – Small size and easy to take |
Specifications
Model | LJQ-0.75 | LJQ-1.5 | LJQ-3 | LJQ-4 | LJQ-6 | LJQ-6.1 | LJQ-9 |
Rated pulling force | 0.75 | 1.5 | 3 | 4 | 6 | 6 | 9 |
Standard lifting height | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Testing load (KN) | 11 | 22 | 37.5 | 50 | 75 | 75 | 135 |
Lifting chain lines (Lin) | 1 | 2 | 2 | 3 | 4 | 3 | 4 |
Manual force when fully loaded (N) | 140 | 220 | 280 | 290 | 260 | 260 | 500 |
Chain diameter (mm) | 5 | 5 | 6 | 6 | 6 | 7.1 | 7.1 |
Contraction distance (mm) | 300 | 500 | 600 | 680 | 680 | 680 | 600 |
Net weight (kg) | 4.7 | 5.7 | 9.8 | 14.5 | 19 | 21 | 24 |
Extra weight per meter of extra lift (kg) | 0.55 | 1.1 | 1.5 | 2.25 | 3 | 3 | 3.6 |
Remark | Lifting Hook | Lifting Hook | Lifting Hook | Lifting Hook | Lifting Hook | Lifting Hook | Lifting Hook |
